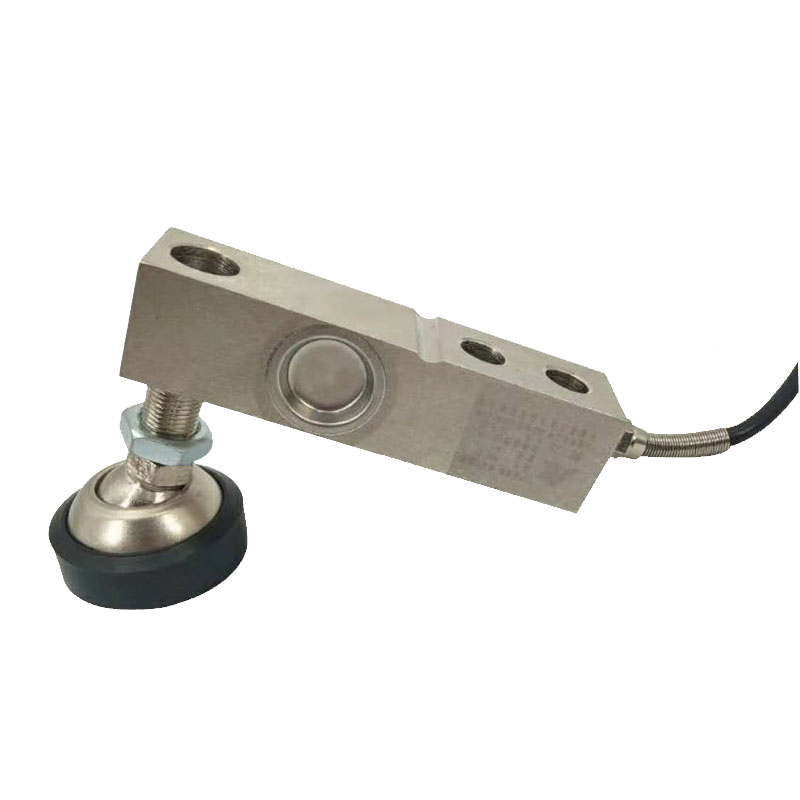

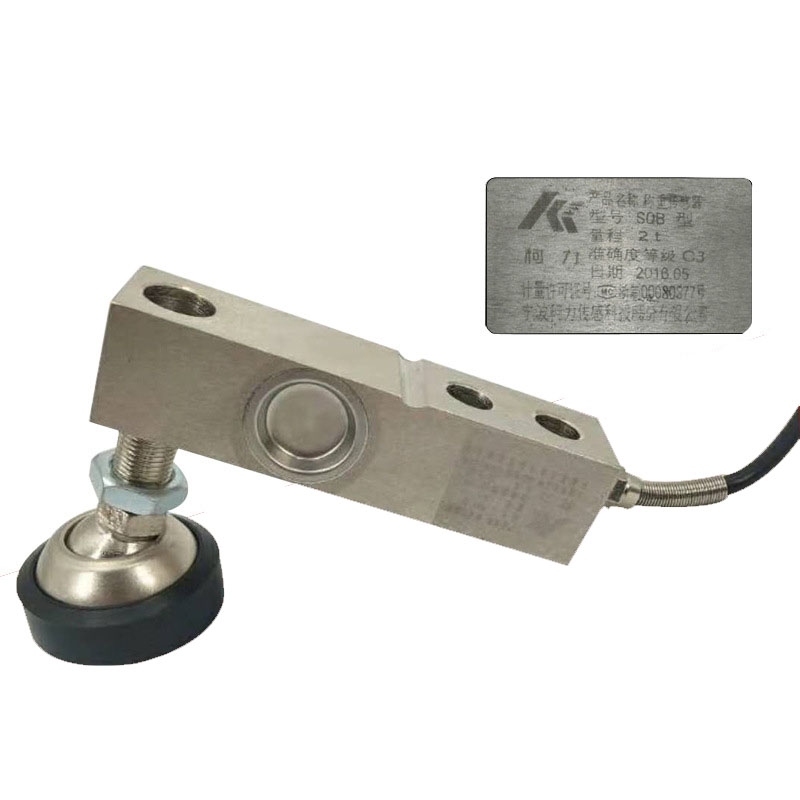

KELI SQB load cell

Products > Load cell > KELI SQB load cell

KELI SQB load cell

FEATURES:

●Capacity: 0.1t to 10t

●Theaded load hole confirguration

●Low profile

●OIML C3 approval


●Optional material: stainless steel, alloy steel


APPLICATION:

●Floor scale

●Tank weighing

Outline Dimension：

Rated capacity(t)

L

L1

L2

L3

L4

H

H1

W

C1

C2

T

0.1,0.15,0.2,0.3,0.5,

0.75,1,1.5,2,2.5

130

12.7

76.2

25.4

53.5

31.8

15.7

31.8

Φ13.5

Φ13

M12

3,5

171.5

19

95.3

38.1

72.5

38.1

26

38.1

Φ20

Φ20

M18x1.5

7.5,10

225.5

25.3

124

50.8

102

50.8

25.4

50.8

Φ27

Φ27

M24x2



SPECIFICATION:

Rated capacity: 0.1ton to 10ton

Operating temperature range: -30 to +70℃

Rated output:2.0±0.002mv/v(0.1t~0.3t)；

3.0±0.003mv/v(0.5t~10t)

Maximum safe overload；150% OF R.C

Combined error：±0.03% F.S(alloy steel)；

±0.05% F.S(stainless steel)

Ultimate safe overload；180% OF R.C

Non-repeatability：±0.02% F.S

Recommended Excitation；10 to 12V DC

Non-linearity：±0.02% F.S

Maximum Excitation；15V DC

Hysteresis error：±0.02% F.S

Environment protection: IP67(0.1t~0.3t)；

IP68(0.5t~10t)

Zero balance: ±1% F.S

Input impedance: 400±20Ω

Creep error(30minutes): ±0.02% F.S

Output impedance: 352±3Ω

Temperature effect on zero: ±0.02% F.S

Insulation resistance at 50V DC: ≥5000MΩ

Temperature effect on output: ±0.02% F.S

Material: nickel-plated alloy steel；Stainless steel

Compensated temperature range: -10 to +40℃

Cable length: (1.5/3)meter(0.1t~2.5t),4.2meter(3t~5t)，5meter(7.5t~10t)，diameter 6mm
